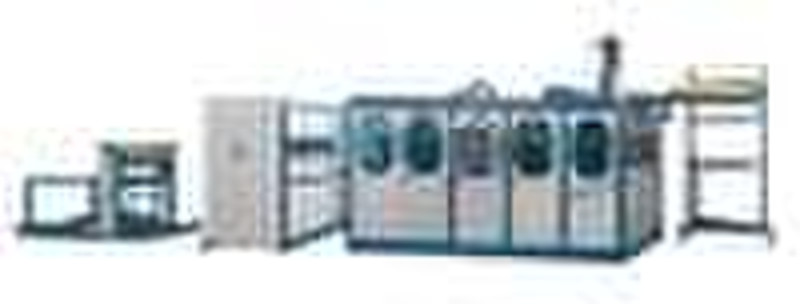

Thermoforming Machine (HSC-660D)

HSC-660D thermoforming machine is designed with most advanced thermoforming technology, a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by PLC. The machine has man-interface operation, preheating by heat conduction oil roller, send sheet by chain, running by cam, press by servo-motor, forming by air pressure. It combines the preheating, material-feeding, heating, drawing, forming, cutting andrewinding into one process. Application area. It is used for forming PP.PS.HIPS.PVC. PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast food boxes etc. Parameters. 1.Maximum forming area.330×580mm 2.Maximum forming depth.120mm 3.Maximum width rage of sheet 300-600mm 4.Thickness range of sheet.0.3-2.5mm 5.Maximum sheet roller diameter.800mm 6.Air pressure.0.7Mpa 7.Water consumption.10 Liters/min 8.Air consumption2000 Liters/min 9.Manufacturing speed.35mould/min 10.Power.3-N AC308V±10% 11.Heating motor power.60kw 12.Main motor power.5.5kw 13.Feeding motor power.3.5kw 14.Pre-drawing motor power.7.0kw 15.Rewinding motor power.0.55kw 16.Weight.4000kg
