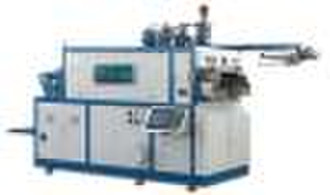

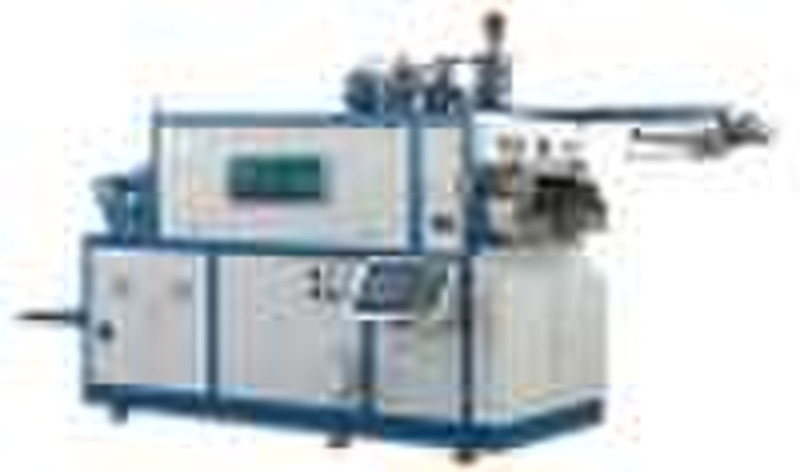

Thermoforming Machine (HSC-660A)

HSC-660A thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by micro PLC. It is operates with man-interface, which can works all by itself. It combines the material feeding, heating, drawing, forming, cutting into one process.It is used for forming PP.PS.HIPS.PVC.and PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast-food boxes etc.1.Maximum forming area.250×580mm2.Maximum forming depth.150mm3.Maximum width rage of sheet 300-600mm4.Thickness range of sheet.0.2-2.5mm5.Maximium sheet roller diameter.710mm6.Air pressure.0.7Mpa7.Water consumption.10 Liters/min8.Air consumption2000 Liters/min9.Manufacturing speed.35mould/min10.Power.3-N AC220V±15V 60HZ11.Heating motor power.38kw12.Main motor power.4kw13.Feeding motor power.2.2kw14.Rewinding motor power.0.55kw15.Weight.4000kg16.Main machine(L×W×H).3300×1650×2250(mm)17.Rewinder (L×W×H).1250×800×1900(mm)
