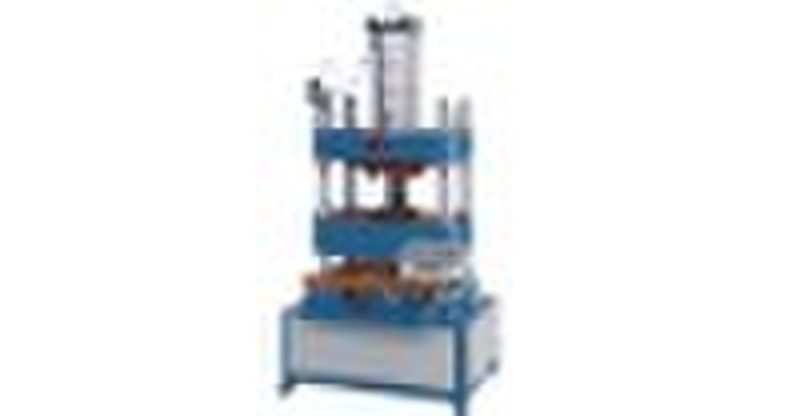

Puncher Machine (HQZY-60)

HQYZ Series Puncher Machine (60T) adopts drive technology with changes hydraulics into supercharge. The working stroke is controlled by pneumatic. when the cutter touches the products, the pressure supercharged to cut, then the mould plate returned. the stacking and cutting station is cycled to work. HQYZ series machine have lower consumption, lower voice, accurate fixed position, long-life mould and easy operation etc. It is suitable to press punch, bending, forging the plastic products in the package, light industry, electronics and hardware fields. 1,Model.100mm2,General stroke.5mm3,Working stroke.1.724,Air consumption.0.0054m /min5,Mould size maximum.700×1300mm6,Air pressure.0.6-1Mpa7,Power.220V 50Hz8,Speed forec.1752-2920Kgf9,Returning force.4500-7540Kgf10,Punch force.128-220T11,Weight.6000Kg13,Dimension.3422×1500×2100(mm)
