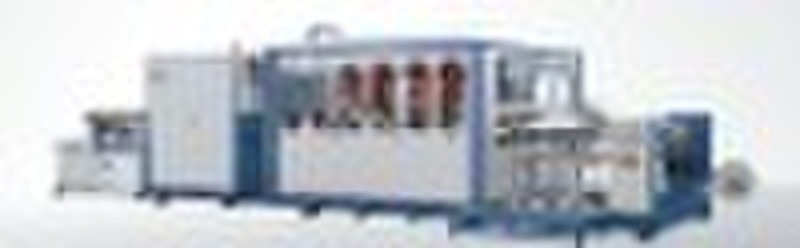

Plastic Thermoforming Machine (HSC-750850)

The machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical,electrical and pneumatic components, and the whole system was controlled by micro PLC, The machine has man-interface operation,radiant heat,male and female die forming and laser blade cutting. It combines feeding,heating,forming cutting and stacking into one process. It is suitable to form BOPS ,HIPS,PS,PP,PET,ABS sheet that can produce boxes,trays,bowls,fast-food boxes,dishes and lids etc. Parameter: 1,Forming area:750×850mm2,Forming depth:100mm3,Thickness range of sheet:0.1-2mm4,Sheet roller diameter:710mm5,Rewinding diameter:710mm6,Air pressure:0.7Mpa7,Air consumption:5000 Liters/min8,Water consumption:170 Liters/min9,Speed:400-720 moulds/h10,Power:3-N AC380V±15V11,Heating power of oven:84kw12,Weight: 11000kg13,Dimension(L×W×H)12000×2200×2200(mm)
